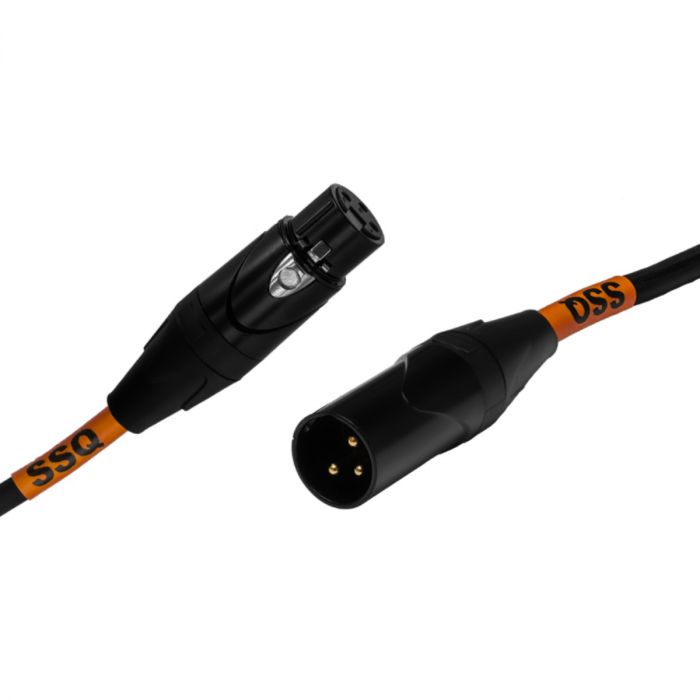

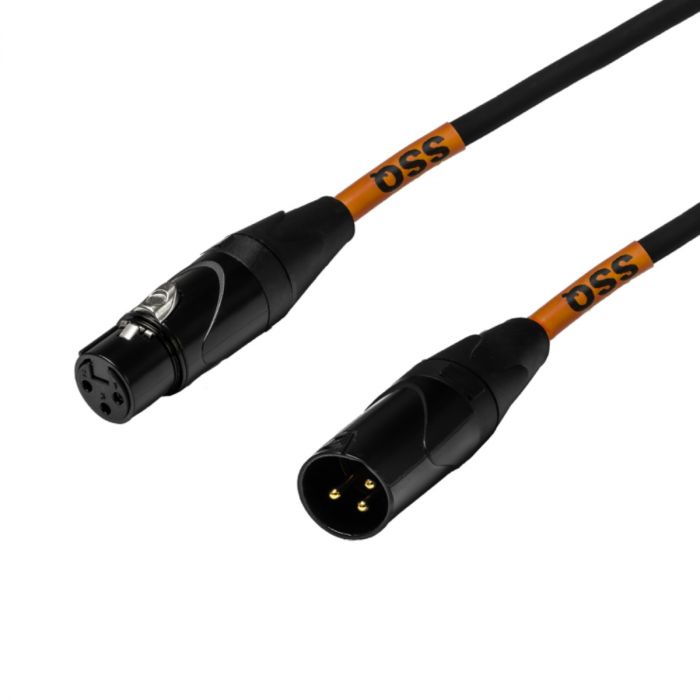

SSQ XX1 Event – 1 Meter XLR-XLR Cable

How a Balanced Cable Works

A balanced cable, also known as a symmetrical cable, contains three conductors: two signal wires (positive and negative) and one ground. Both signal paths carry the same signal but in opposite phases, allowing noise and interference to be effectively canceled out when combined.

Key Factors When Choosing an XLR Cable

Cable Thickness – The Balance Between Durability and Flexibility

Cable thickness is essential: it shouldn’t be too thin, which would increase the risk of mechanical damage, nor too thick, which would reduce flexibility. SSQ cables feature a 6 mm diameter and dual-layer protection, striking the perfect balance between strength and everyday usability.

Connectors – Tested and Professionally Assembled

The connectors in SSQ cables have undergone thousands of hours of testing, confirming their durability and quality. Each cable is professionally assembled, with heat-shrink sleeves added at the ends to reinforce the most vulnerable points.

Shielding – Protection Against Interference

Shielding is crucial in microphone cables to protect the signal from interference. SSQ cables use a braided copper shield with at least 90% coverage, ensuring exceptional protection, comparable to much more expensive cables.

Applications of XLR Cables

SSQ XLR cables offer a wide range of applications, including:

• Microphone cable – for stage microphones.

• Speaker cable – connecting speakers to mixers or interfaces.

• Studio monitor cable – linking studio monitors with audio interfaces.

• Condenser microphone cable – capable of transmitting +48V phantom power for microphones that require it.

Polish Quality and Lifetime Warranty

Manufactured in Poland, SSQ cables are built with outstanding technical parameters and practical design solutions.
The XX1 model features heat-shrink sleeves at both ends to protect the cable’s most vulnerable points. The female XLR connector with a metal latch ensures a secure connection, preventing accidental disconnection and protecting both the cable and device input.

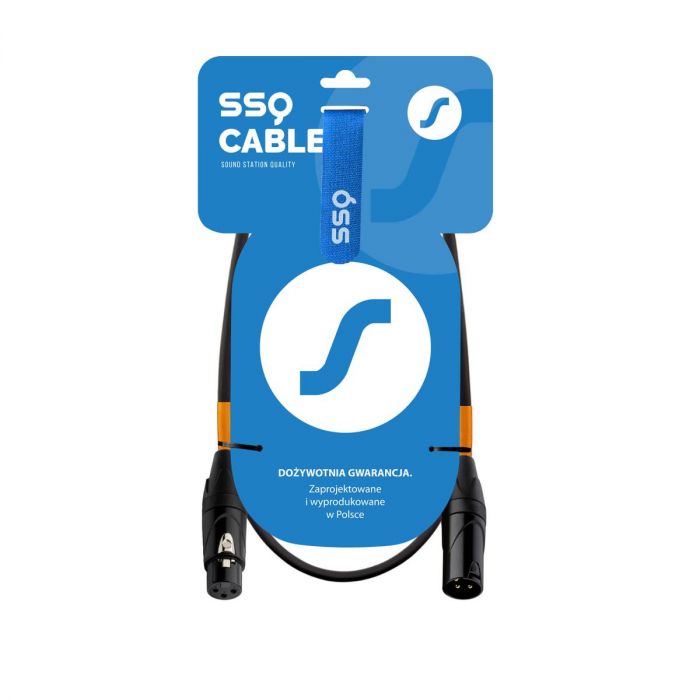

Each SSQ cable also comes with a blue hook-and-loop strap for easy organization and transport.

Technical Specifications

• Length: 1 meter

• Connectors: 3-pin male XLR to 3-pin female XLR

• Conductor cross-section: 2 × 0.23 mm²

• Outer diameter: 6 mm

• Strain relief: reinforced connector ends

• Soldering: lead-free with silver additive

• Copper: high-quality OFC (Oxygen-Free Copper)

• Shielding: braided copper in a cross-weave pattern

• Accessory: blue hook-and-loop strap included

• Warranty: lifetime warranty from SSQ
