SSQ RCAXM2 - RCA - XLR cable

The Polish SSQ brand is characterised by the production of very high quality audio cables , microphone stands and other accessories for studio and commercial use.

SSQ cables are manufactured in Poland. Each of them is made with due care and from very high quality materials.

The manufacturer, confident of the class of its products, provides a lifetime guarantee.

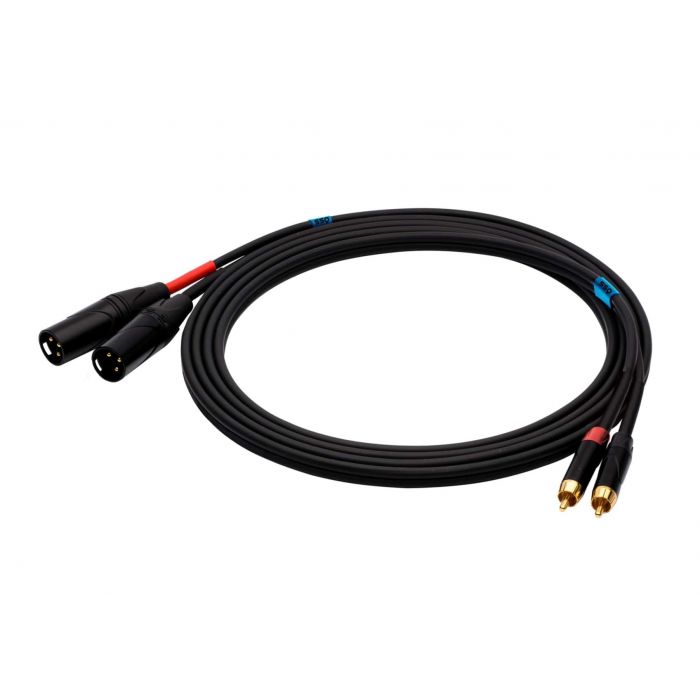

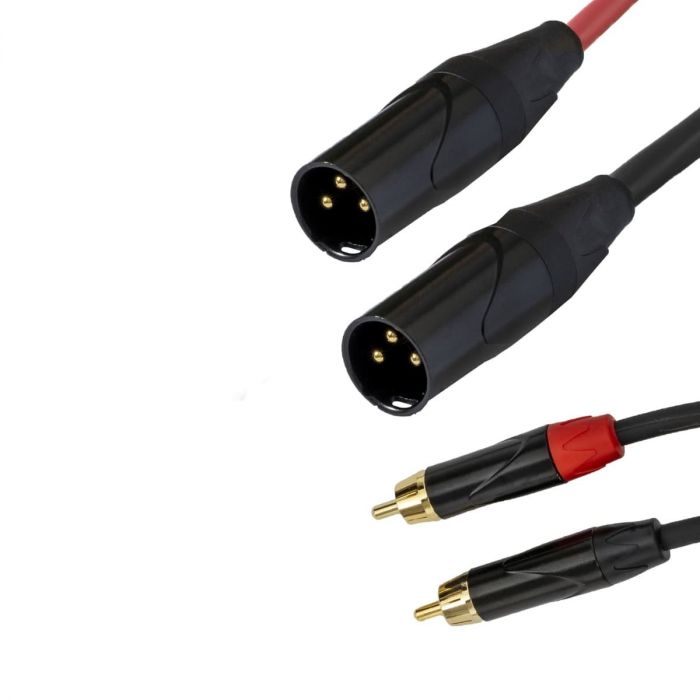

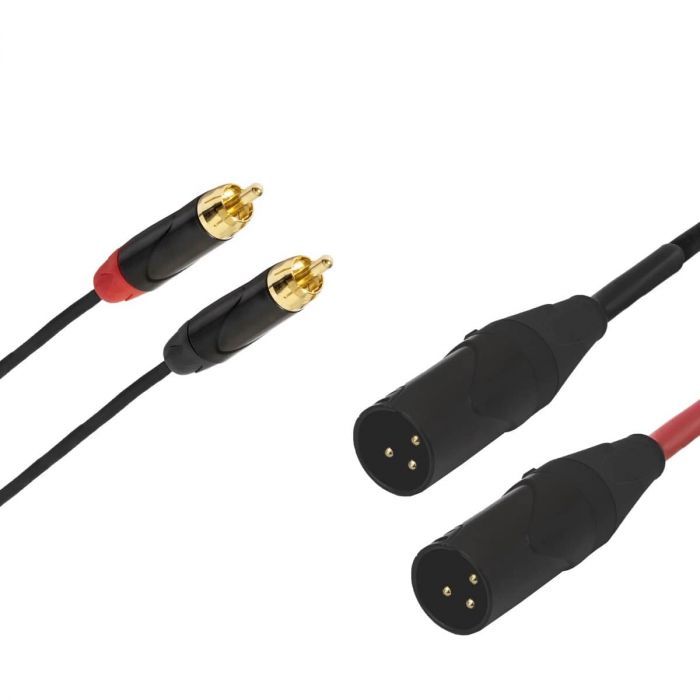

The RCAXM model is a cable whose ends are terminated on one side with 2x black XLR male with gold-plated pins, and on the other side with 2x gold-plated male RCA . High-quality plugs and very precise workmanship ensure the highest quality sound transmission.

Application

We can use the 2x RCA - 2x XLR cable in connection with DJ consoles, amplifiers and all devices that have RCA outputs for the mixer, active speakers, audio interfaces and all devices with XLR inputs .

Specifications:

-Length : 2 metres

-Connectors: 2 x RCA- 2 x XLR Male

-Core: 2 x 0.23mm²

-Cable outer diameter 2x5mm

-Connectors with cable pull-out protection

-Plugs soldered with lead-free tin with added silver

-High-quality OFC copper

-Copper braided screen

-Each cable has velcro fastening for easy later transport

Precise cable specifications:

Operating temperature:

Fixed installations: -30°C to 70°C

mobile installations: -5°C to 70°C

Capacitance (at 1kHz):

conductor/conductor: ≤ 65nF/km

conductor/shield: ≤ 130nF/km

Impedance: 85Ω±5

Minimum insulation resistance: 1.0GΩxkm

Minimum bending radius: 5xØ (Ø - cable diameter)

Diameter: 6mm

Conductors: multi-stranded copper (30x0.1 strand construction)

Insulation: polyethylene PE

Conductor marking: red, natural

Core: strands twisted in parallel with cotton cords

Screen: stranded copper braid with min. 90%

Sheath: special PVC compound, self-extinguishing and flame-retardant in accordance with EN 60332-1

Lifetime guarantee
